Product Description:
This module uses a very mature charging chip TP4056, with simple peripheral circuits, good protection performance, and high charging accuracy.
The current of this module can be adjusted by yourself, as long as the fixed resistance (R3) in the circuit board is changed, the output can be changed to 100 mA-1000 mA.
Charging Current (mA) = (1200mV / Resistor Value (ohms)); where 1200mV is a constant value specified by the TP4056 datasheet. Default Charging Current is 1000mA.
Specifications:
- Charge module: Linear charging
- Current: 1A adjustable
- Charge precision: 1.5%
- Input voltage: 4.5V-5.5V
- Full charge voltage: 4.2V ± 1%
- Led indicator: Red LED is charging, Blue is full charged
- Input interface: Type-C
- Work temperature: -10° to +85°
- Inversed polarity: NOT SUPPORTED
Package Includes:

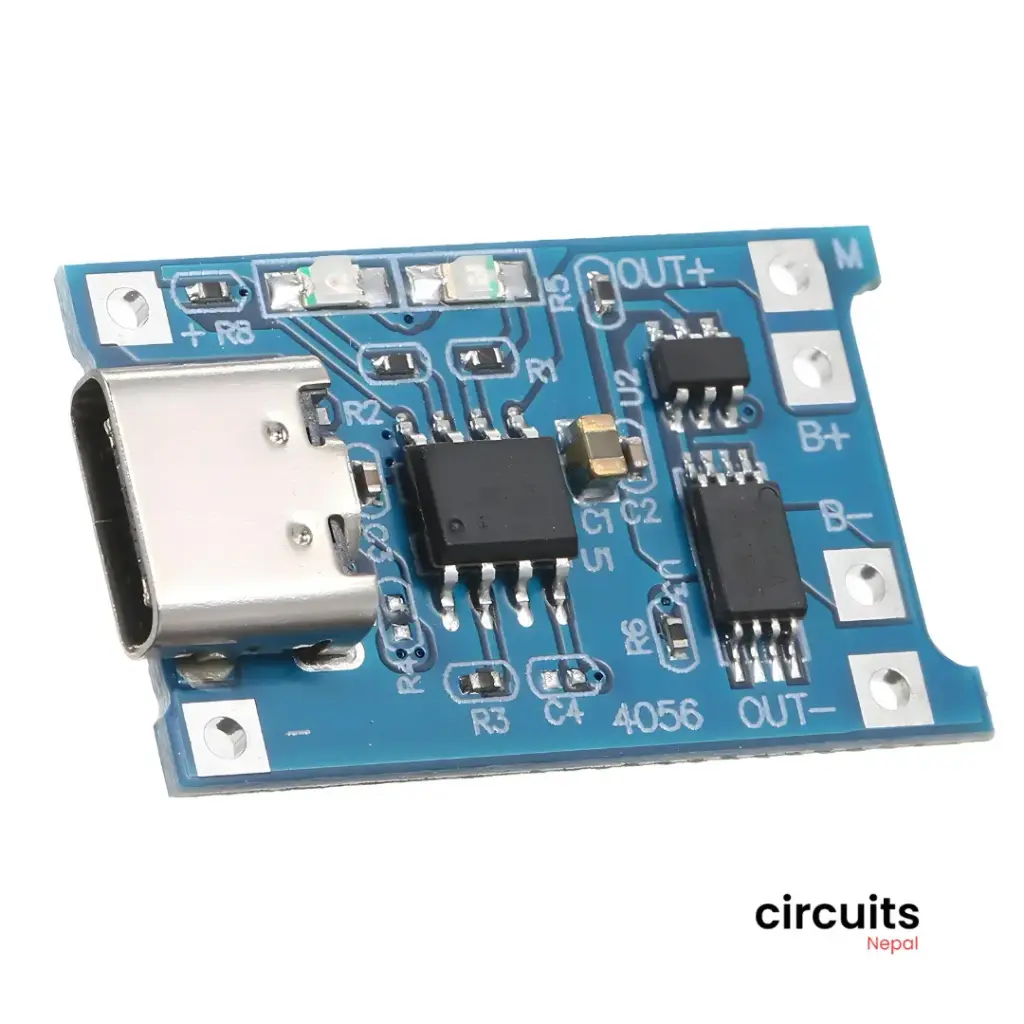

1x Type-C TP4056 Li-ion Charing Module
