Product Specifications:
| Parameter | Specification |
|---|---|

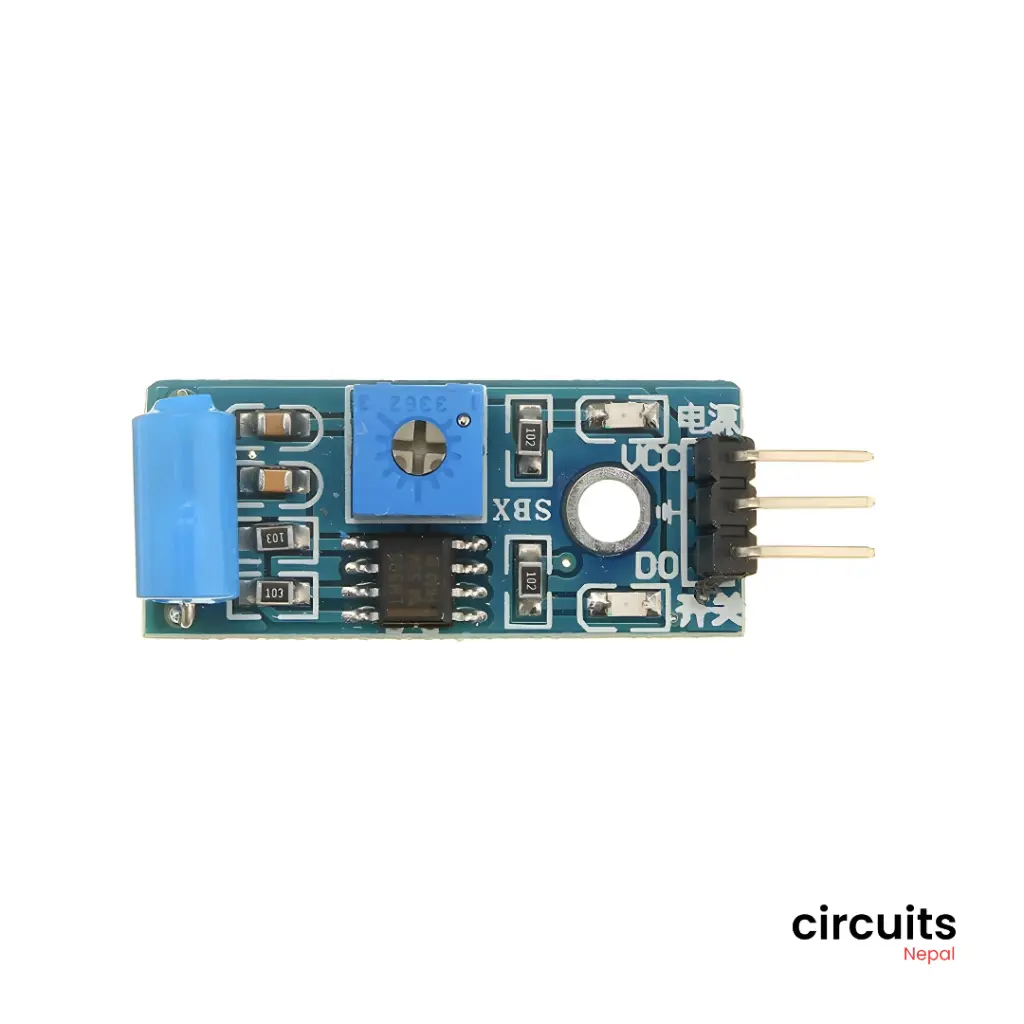

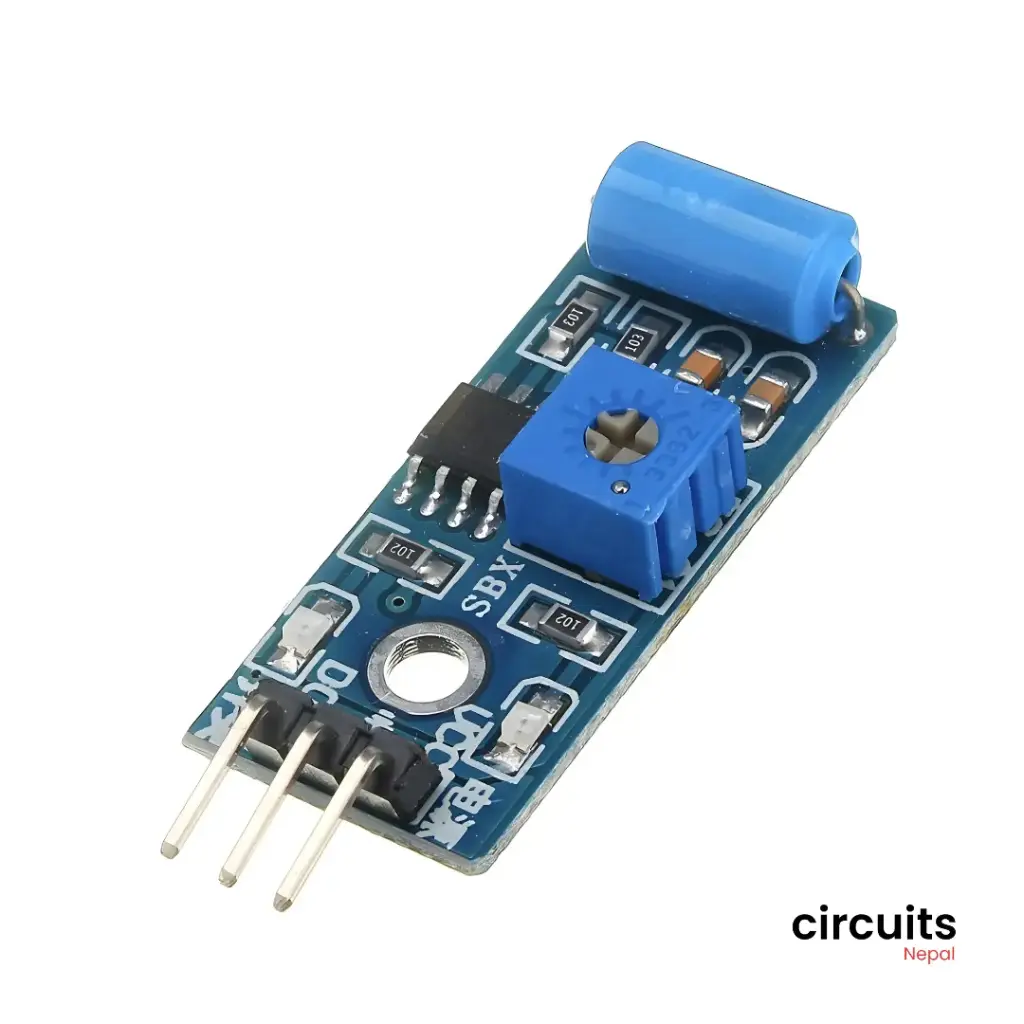

| Module Name | SW420 Vibration Sensor Module |
| Type | Analog Vibration Sensor |
| Input Voltage | 3.3V to 5V |
| Output Type | Digital (HIGH/LOW) or Analog (depending on connection) |
| Sensor Type | Mechanical switch or vibration sensor |
| Trigger Type | Active Low (when vibration detected, the output is LOW) |
| Sensing Type | Vibration detection |
| Sensitivity | Adjustable (via onboard potentiometer) |
| Response Time | Typically 10-100ms |
| Operating Temperature | -40°C to 85°C |
| Dimensions | ~32mm x 24mm x 10mm (varies by model) |
| Weight | ~5g |
| LED Indicator | Onboard LED to indicate vibration detection |
| Output Voltage | 0V (LOW) or VCC (HIGH), depending on vibration status |
| Connection Type | Female headers, or direct GPIO pin connections for microcontroller |
| Power Consumption | Typically around 5-10mA (depending on the state) |
| Calibration | Adjustable via potentiometer for sensitivity control |
| Applications | Vibration detection, motion sensors, security systems, robotics, etc. |
Package Includes:
1x SW420 Vibration Sensor Module
