Product Description:
The Arduino Soil Moisture Sensor Module is an easy-to-use, efficient tool for monitoring soil moisture levels in your garden, greenhouse, or any other plant-based environment. Whether you're building an automated watering system or simply want to monitor the moisture levels of your soil, this sensor provides accurate readings, making it perfect for Arduino-based projects. It helps optimize water usage, ensuring your plants receive just the right amount of water.
How to Use:
- Connect the sensor to your Arduino board (VCC to 5V, GND to GND, and the output to an analog pin like A0).
- Insert the sensor into the soil at the desired depth.
- Upload the Arduino code to start reading moisture levels from the sensor.
- Use the output data to control a watering system or monitor the soil condition.
| Feature | Description |
|---|---|
| Type | Analog Soil Moisture Sensor |
| Operating Voltage | 3.3V to 5V |
| Signal Output | Analog (0-1023), which can be mapped to soil moisture percentage |
| Output Pin | Analog Pin (e.g., A0) or Digital Pin for threshold detection |
| Measuring Range | 0 - 100% moisture content (varies with soil type) |
| Response Time | < 100 ms |
| Sensor Material | Corrosion-resistant probes |
| Dimensions | Approx. 70mm x 30mm x 20mm |
| Application | Soil moisture monitoring, automated irrigation systems, plant care |
| Operating Temperature | -40°C to +60°C |
| Humidity Range | 0 - 100% RH |
| Package Contents | 1 x Soil Moisture Sensor, 1 x Jumper Wires |
Package Includes:

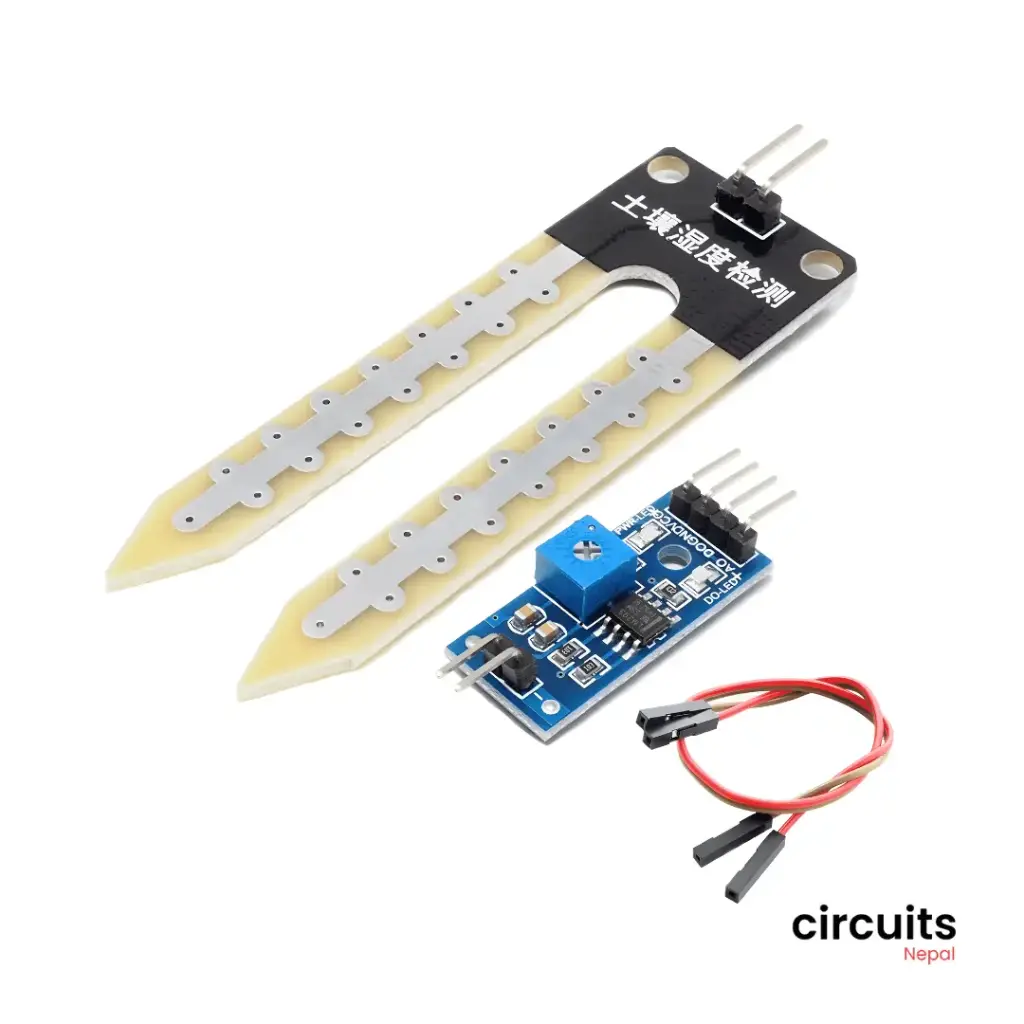

1x Arduino Soil Moisture Sensor Kit (As shown in picture)
